多级铜陵管道增压泵工作原理
当电机带动轴上的叶轮高速旋转时，充满在叶轮内的液体在离心力的作用下，从叶轮中心沿着叶片间的流道甩向叶轮的四周，由于液体受到叶片的作用，使压力和速度同时增加，经过导壳的流道而被引向次一级的叶轮，这样，逐次地流过所有的叶轮和导壳，进一步使液体的压力能量增加。将每个叶轮逐级叠加之后，就获得一定扬程。

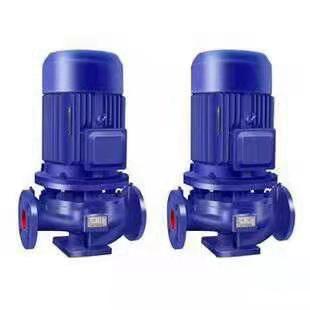

GDL型立式多级管道泵是90年代zui5 新泵型。zui大优点节能、占地面积小、安装方便、性能稳定、外套用1Cr18Ni9Ti优质不锈钢,轴封用耐磨机械密封,无泄漏、使用寿命长。以水力平衡解决轴向力,因而泵运转平稳、低噪音,安装条件优于DL型泵,可以简便安装于任一段水平管路中间。水力效率高，性能范围广，进出口直径25-100毫米，流量每小时2～72吨，扬程25～150米，共9个系列70多个规格，完全能满足高层建筑、深井矿等的给排水及消防设施需要,是各大行业冷热水或一般介质、理化性质类似于水等液体输送的zui的佳泵型。
型号 | 流量 | 扬程 | 吸程 | 电机功率 |
25GDL2-12×3 | 2 | 36 | 7.5 | 1.1 |
25GDL2-12×4 | 2 | 48 | 7.5 | 1.1 |
25GDL2-12×5 | 2 | 60 | 7.5 | 1.5 |
25GDL2-12×6 | 2 | 72 | 7.5 | 1.5 |
25GDL2-12×7 | 2 | 84 | 7.5 | 2.2 |
25GDL2-12×8 | 2 | 96 | 7.5 | 2.2 |
25GDL2-12×9 | 2 | 108 | 7.5 | 2.2 |
25GDL2-12×10 | 2 | 120 | 7.5 | 3 |
25GDL2-12×11 | 2 | 132 | 7.5 | 3 |
25GDL2-12×12 | 2 | 144 | 7.5 | 3 |
25GDL2-12×13 | 2 | 156 | 7.5 | 4 |
25GDL2-12×14 | 2 | 168 | 7.5 | 4 |
25GDL2-12×15 | 2 | 180 | 7.5 | 4 |
25GDL4-11×3 | 4 | 33 | 7.5 | 1.1 |
25GDL4-11×4 | 4 | 44 | 7.5 | 1.5 |
25GDL4-11×5 | 4 | 55 | 7.5 | 2.2 |
25GDL4-11×6 | 4 | 66 | 7.5 | 2.2 |
25GDL4-11×7 | 4 | 77 | 7.5 | 3 |
25GDL4-11×8 | 4 | 88 | 7.5 | 3 |
25GDL4-11×9 | 4 | 99 | 7.5 | 3 |
25GDL4-11×10 | 4 | 110 | 7.5 | 4 |
25GDL4-11×11 | 4 | 121 | 7.5 | 4 |
25GDL4-11×12 | 4 | 132 | 7.5 | 4 |
25GDL4-11×13 | 4 | 143 | 7.5 | 4 |
25GDL4-11×14 | 4 | 154 | 7.5 | 5.5 |
25GDL4-11×15 | 4 | 165 | 7.5 | 5.5 |
40GDL6-12×3 | 6 | 36 | 7.5 | 1.5 |
40GDL6-12×4 | 6 | 48 | 7.5 | 2.2 |
40GDL6-12×5 | 6 | 60 | 7.5 | 2.2 |
40GDL6-12×6 | 6 | 72 | 7.5 | 3 |
40GDL6-12×7 | 6 | 84 | 7.5 | 3 |
40GDL6-12×8 | 6 | 96 | 7.5 | 4 |
40GDL6-12×9 | 6 | 108 | 7.5 | 4 |
40GDL6-12×10 | 6 | 120 | 7.5 | 4 |
40GDL6-12×11 | 6 | 132 | 7.5 | 5.5 |
40GDL6-12×12 | 6 | 144 | 7.5 | 5.5 |
40GDL6-12×13 | 6 | 156 | 7.5 | 7.5 |
40GDL6-12×14 | 6 | 168 | 7.5 | 7.5 |
40GDL6-12×15 | 6 | 180 | 7.5 | 7.5 |
50GDL12-15×2 | 12 | 30 | 7 | 2.2 |
50GDL12-15×3 | 12 | 45 | 7 | 3 |
50GDL12-15×4 | 12 | 60 | 7 | 4 |
50GDL12-15×5 | 12 | 75 | 7 | 5.5 |
50GDL12-15×6 | 12 | 90 | 7 | 5.5 |
50GDL12-15×7 | 12 | 105 | 7 | 7.5 |
50GDL12-15×8 | 12 | 120 | 7 | 7.5 |
50GDL12-15×9 | 12 | 135 | 7 | 11 |
50GDL12-15×10 | 12 | 150 | 7 | 11 |
50GDL18-15×2 | 18 | 30 | 6 | 3 |
50GDL18-15×3 | 18 | 45 | 6 | 4 |
50GDL18-15×4 | 18 | 60 | 6 | 5.5 |
50GDL18-15×5 | 18 | 75 | 6 | 7.5 |
50GDL18-15×6 | 18 | 90 | 6 | 7.5 |
50GDL18-15×7 | 18 | 105 | 6 | 11 |
50GDL18-15×8 | 18 | 120 | 6 | 11 |
50GDL18-15×9 | 18 | 135 | 6 | 15 |
50GDL18-15×10 | 18 | 150 | 6 | 15 |
65GDL24-12×2 | 24 | 24 | 6 | 3 |
65GDL24-12×3 | 24 | 36 | 6 | 4 |
65GDL24-12×4 | 24 | 48 | 6 | 5.5 |
65GDL24-12×5 | 24 | 60 | 6 | 7.5 |
65GDL24-12×6 | 24 | 72 | 6 | 7.5 |
65GDL24-12×7 | 24 | 84 | 6 | 11 |
65GDL24-12×8 | 24 | 96 | 6 | 11 |
65GDL24-12×9 | 24 | 108 | 6 | 15 |
65GDL24-12×10 | 24 | 120 | 6 | 15 |
65GDL24-12×11 | 24 | 132 | 6 | 15 |
65GDL24-12×12 | 24 | 144 | 6 | 18.5 |
80GDL36-12×2 | 36 | 24 | 5.5 | 4 |
